WeldPRO Tig Gas Lens Kit

$99.99 $129.99

Improve shielding gas coverage by distributing shielding gas around the tungsten

Most welders, even beginners are well-versed with the traditional components of a GTAW - torch-nozzles, collets, back caps, collet bodies, and tungsten. But the gas lens may be more of a mystery.

Set up your game and TIG Weld like a PRO using this WeldPRO Tig Gas Lens Kit. This kit replaces the collet body that is standard in a GTAW torch. In conjunction with a collet, it helps hold the tungsten in place and provides the electrical contact necessary for proper current transfer. It also serves a much more important function by improving the shielding gas coverage and joint accessibility.

HIGHLIGHT BENEFITS

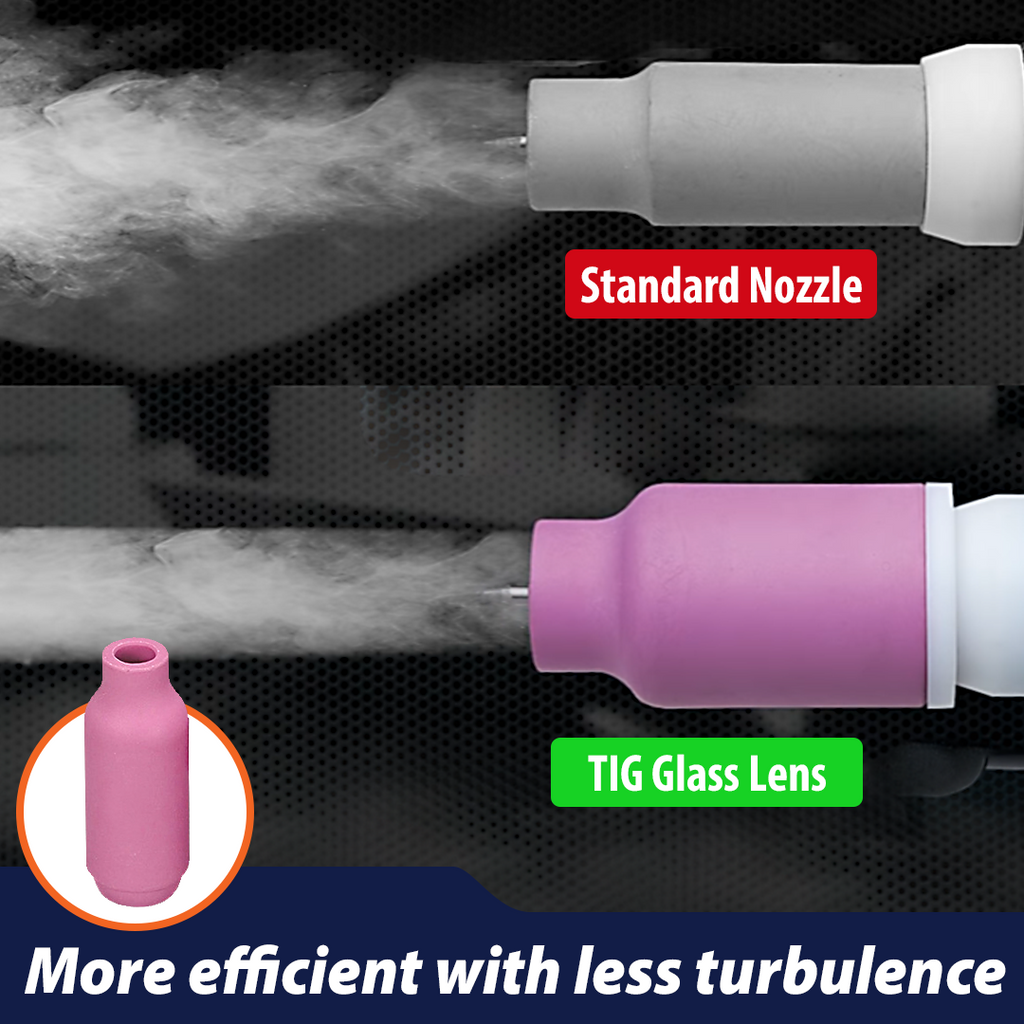

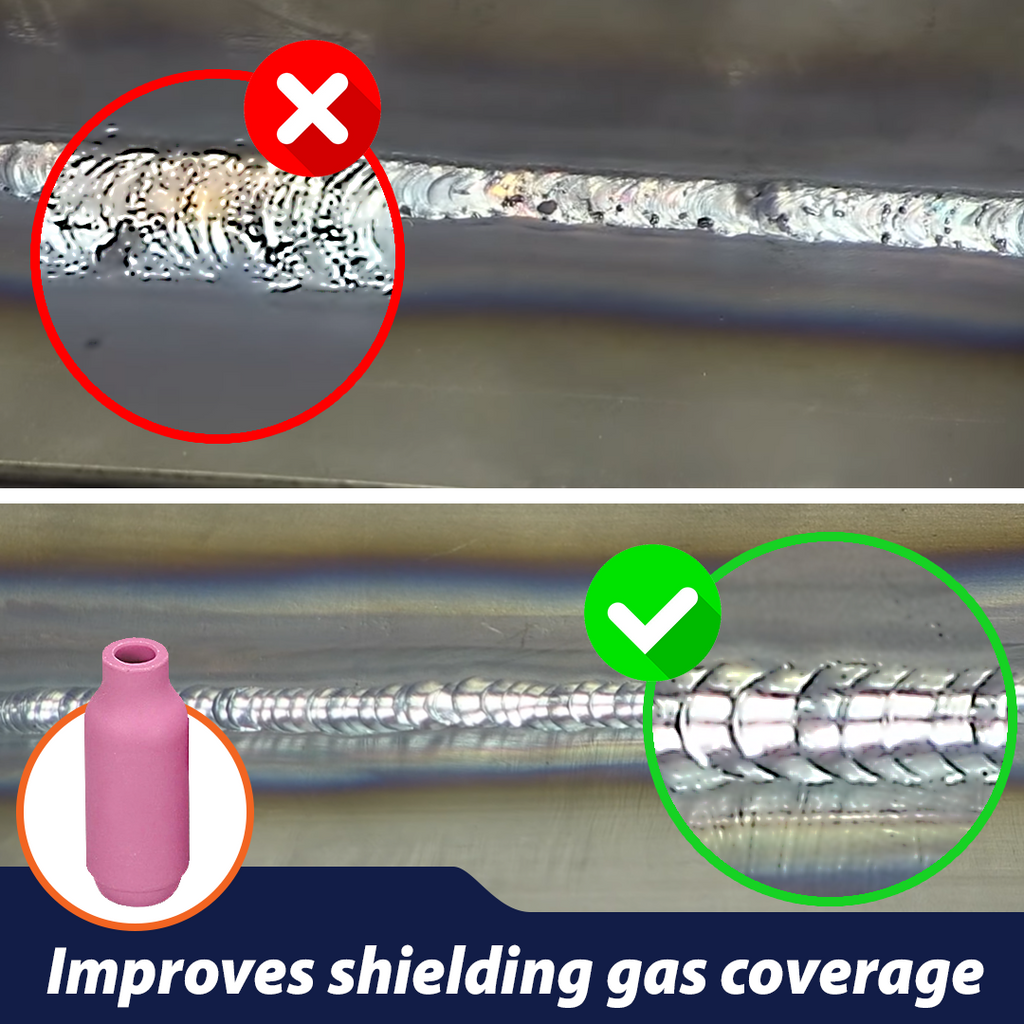

🔆Improves Shielding Gas Coverage: Get improved visibility of the area you are welding and of the arc itself. This gas lens kit distributes the shielding gas more efficiently with less turbulence than those with a conventional design. The gas lens also enables the tungsten to protrude further out of the torch for more maneuverability.

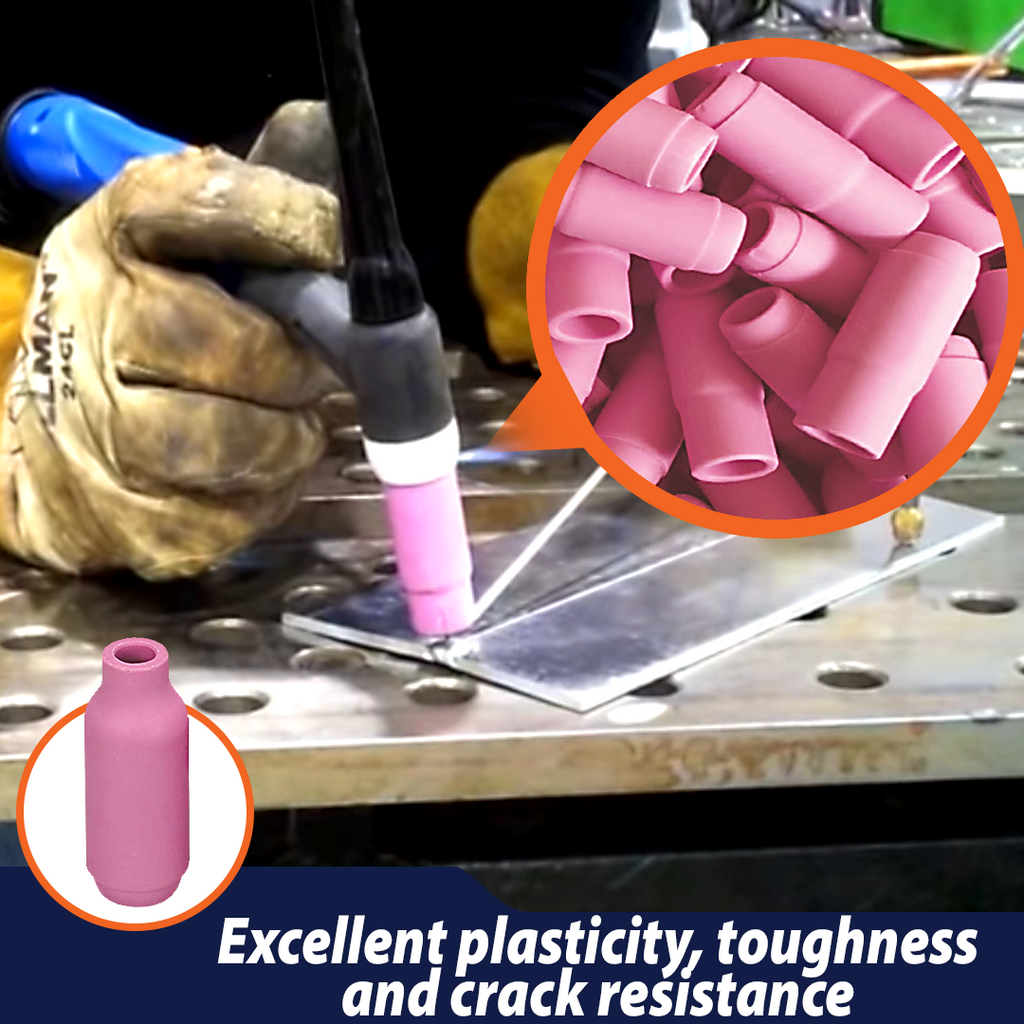

🔆Excellent Kit with Durable Material: With excellent plasticity, toughness and crack resistance especially on low-temperature impact toughness. Basically, it's just 2 parts that you need the gas lens and the cup. The collet is the same for both. You need a gas lens that matches your tungsten diameter.

🔆Variety of Uses: This WeldPRO Tig Gas Lens Kit is mainly applicable to many types of welding guns, WP-17, WP-18, and WP-26. Applicable to welding machines such as Rilon, Jasic, Riland, Berlan, Mitech, Chiry, UNT, Krypton and so on.

🔆Offers Distinct Benefits: Reduce shielding gas turbulence and provides longer, undisturbed laminar flow of the gas to the weld pool. It also enables the welder to move the nozzle further away from the joint and extend the tungsten electrode past the nozzle by one inch or more. This extension also helps reduce tungsten inclusions and improves visibility of the arc and the weld puddle. No need to sacrifice shielding gas coverage, especially on joints with limited access.

Product Details:

Components: Copper, Aluminia

Tig Aluminia Sizes:

4-(54N18)
5-(54N17)
6-(54N16)
7-(54N15)
8-(54N14)
10-(53N88)
12-(53N87)

Tig Gas Lens Sizes

45v26 (Medium)
45v64 (Large)

Package Included:

1 x TIG Alumina Nozzles
1 x TIG Gas Lens
1 x Gas Lens Insulator.

TIG Gas Lens (Sizes)	Heights	Aperture	Material
45v26 (Medium)	48mm	2.4mm	Copper
45v64 (Large)	50mm	3.2mm	Copper

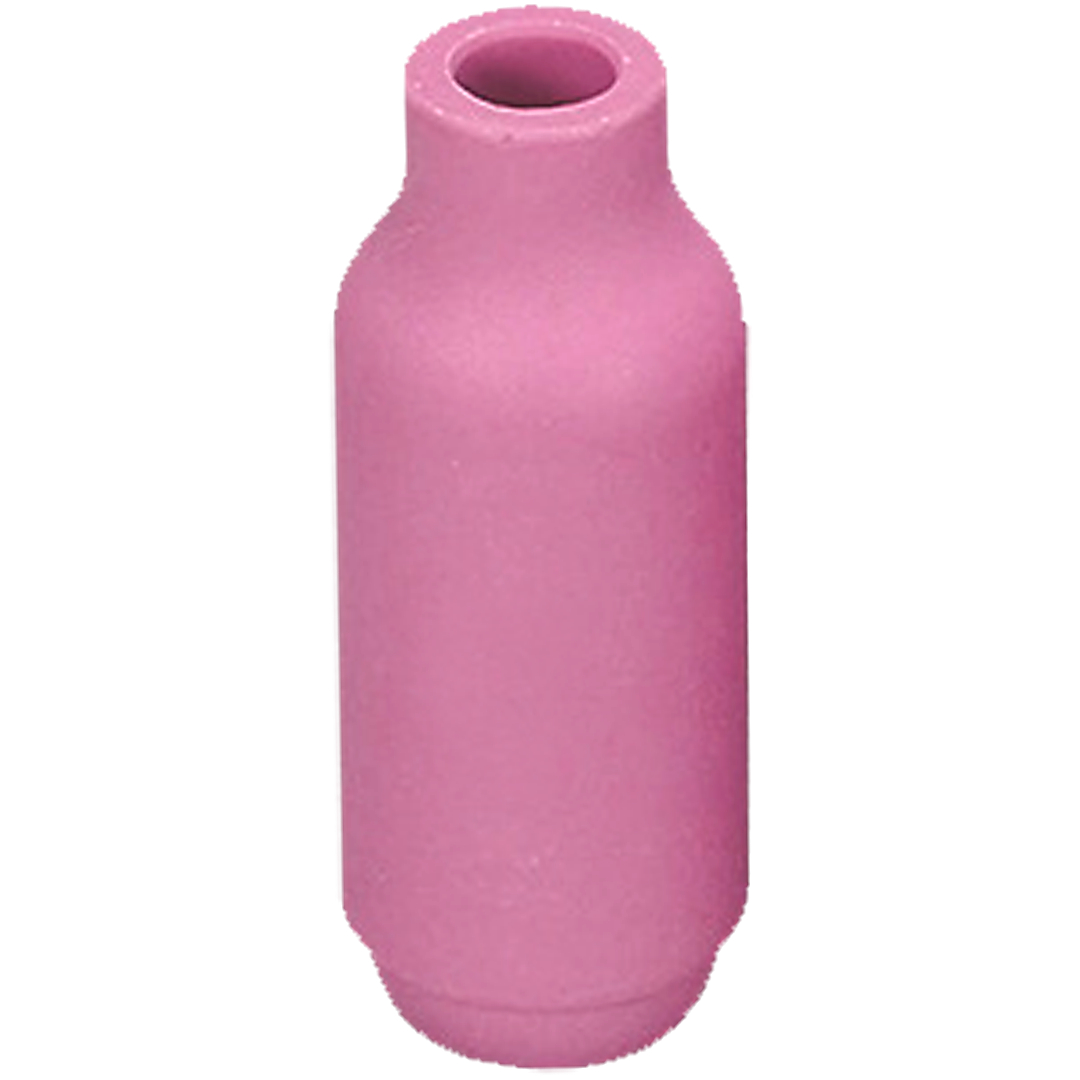

TIG Alumina Nozzles (Sizes)	Internal Aperture	Outer Diameter	Length	Material
4-(54N18)	6.5mm	11mm	42mm	Alumina
5-(54N17)	8mm	13mm	42mm	Alumina
6-(54N16)	9.5mm	14mm	42mm	Alumina
7-(54N15)	11mm	15mm	42mm	Alumina
8-(54N14)	12.5mm	17mm	42mm	Alumina
10-(53N88)	16.5mm	21mm	48mm	Alumina
12-(53N87)	19.5mm	22mm	48mm	Alumina

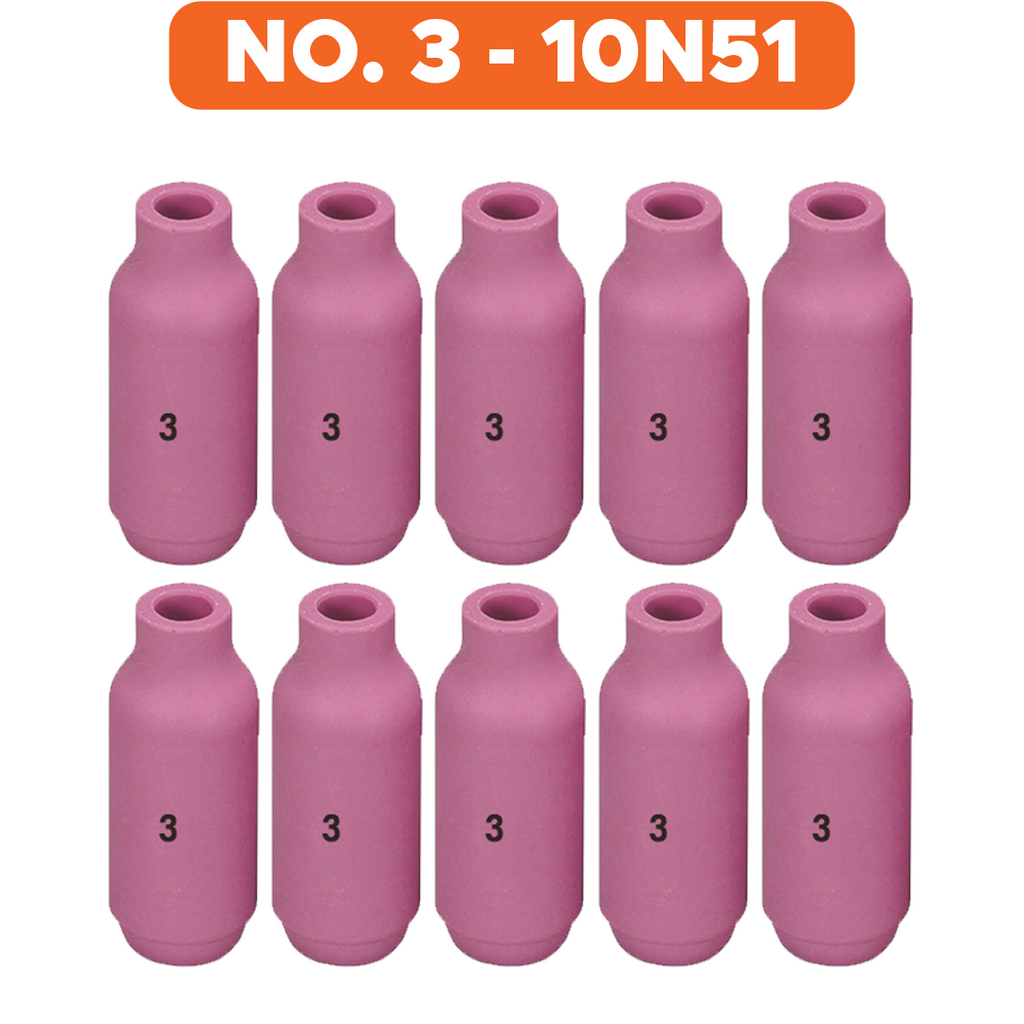

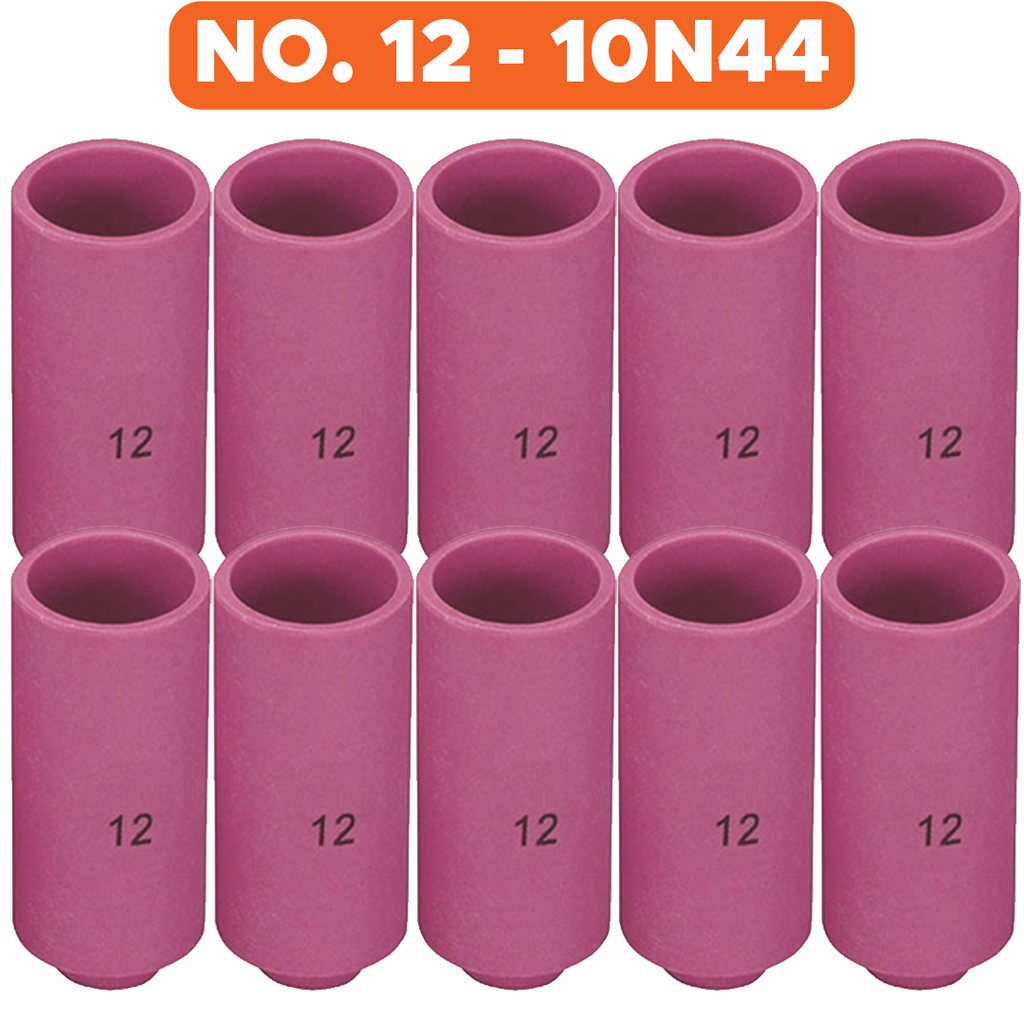

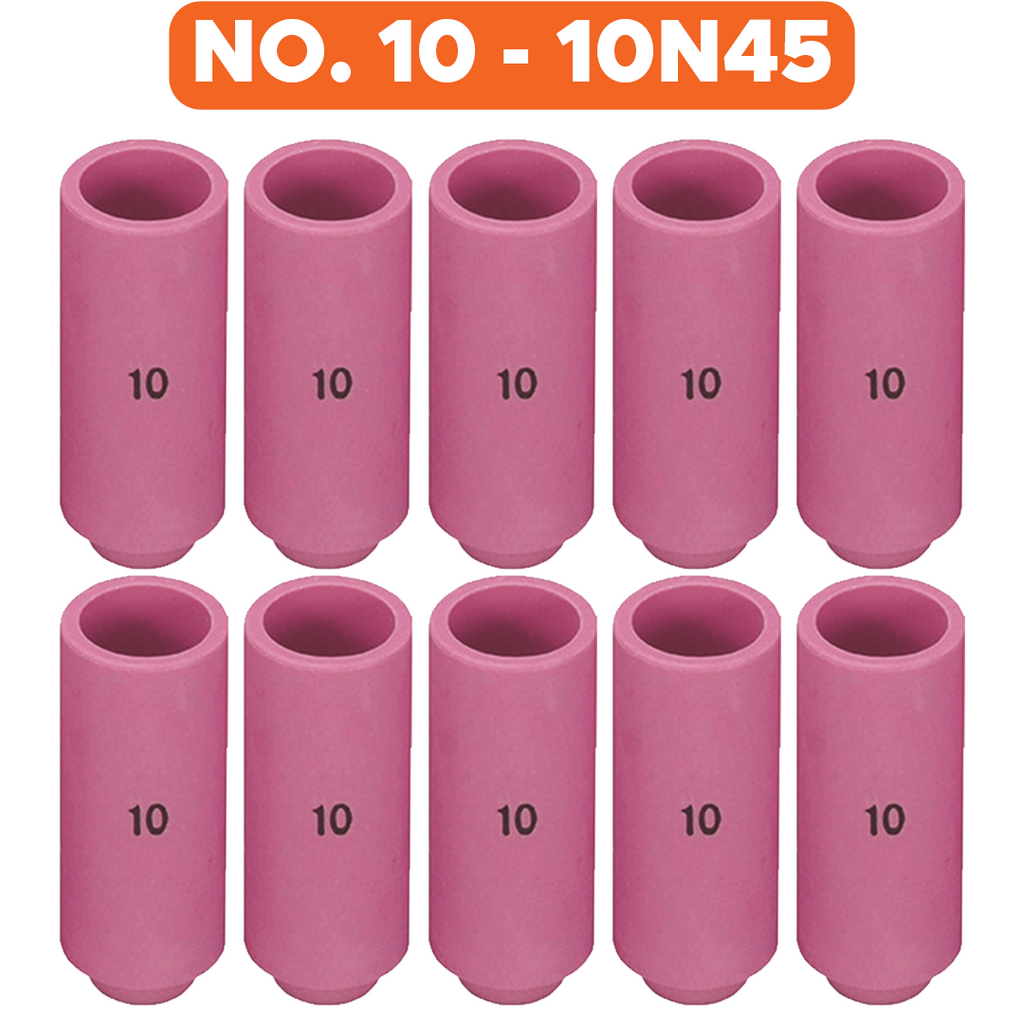

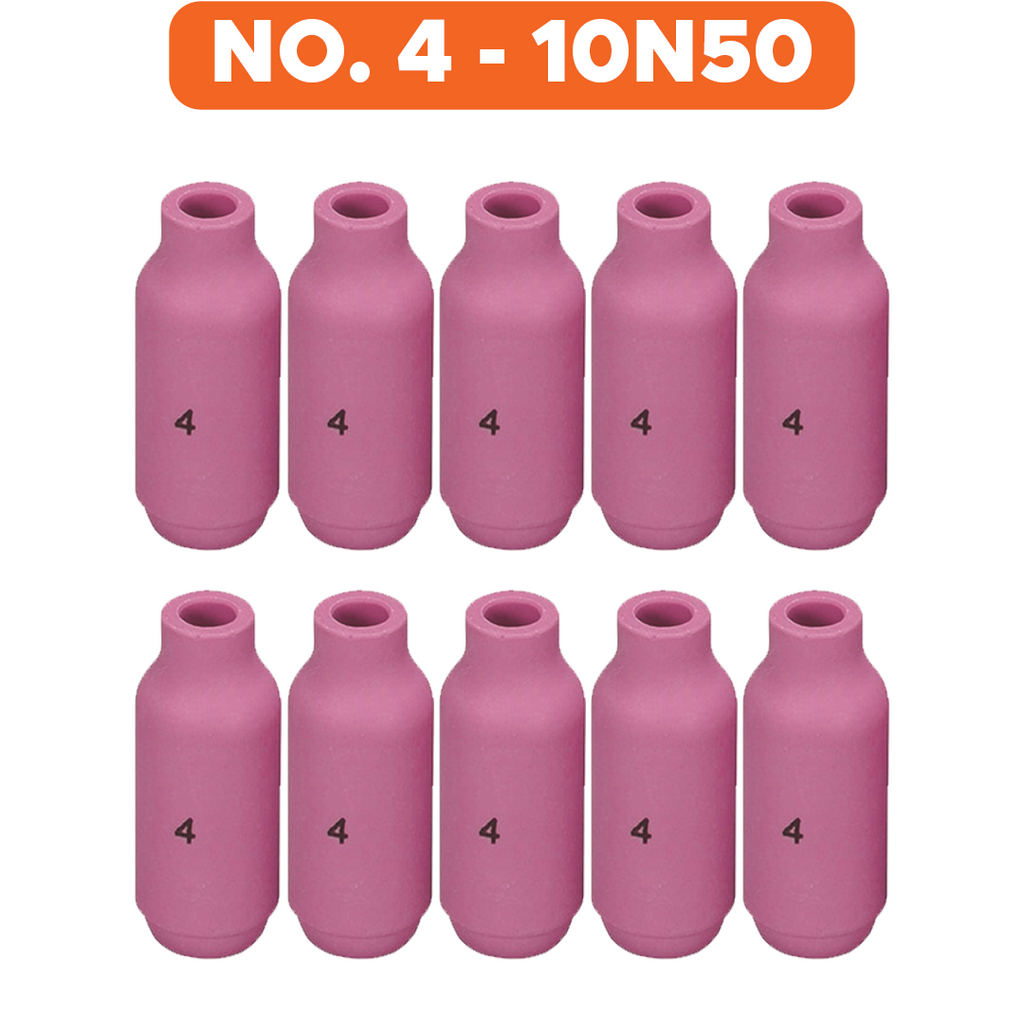

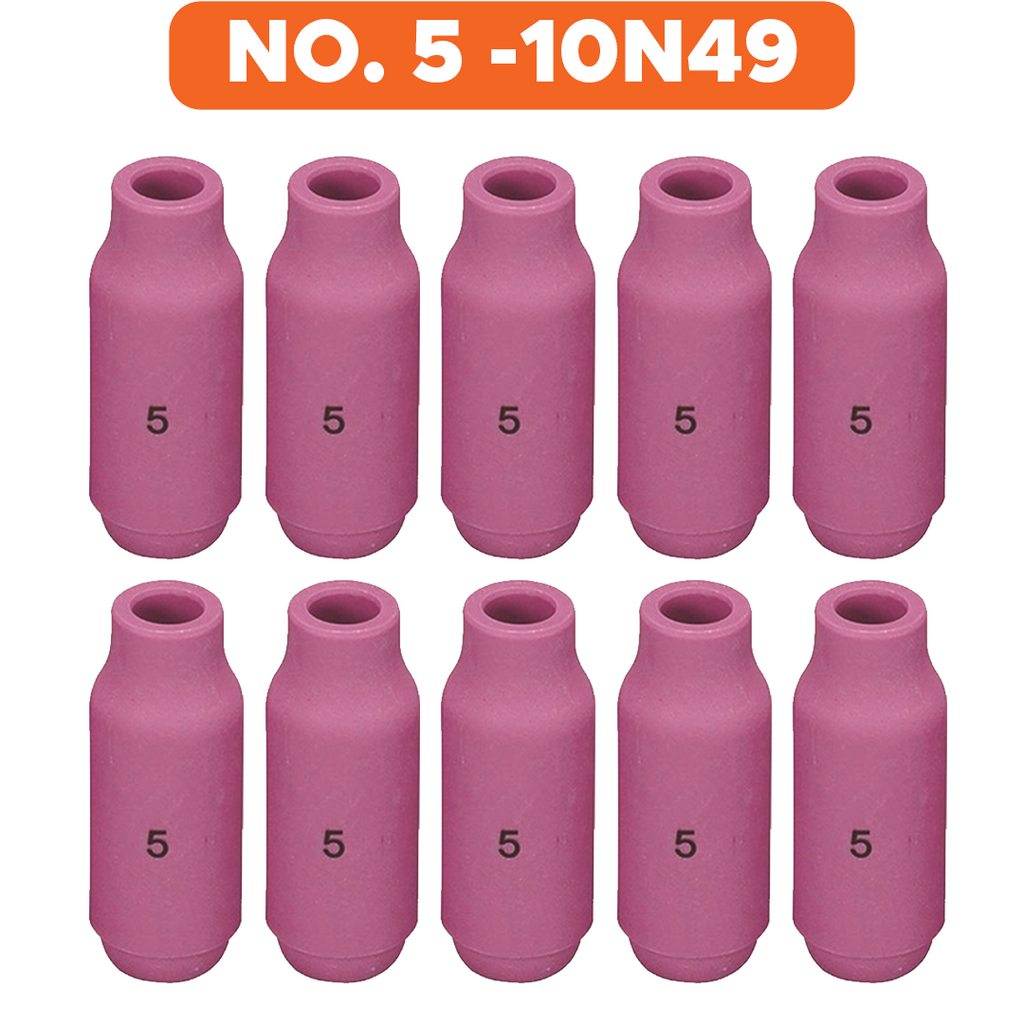

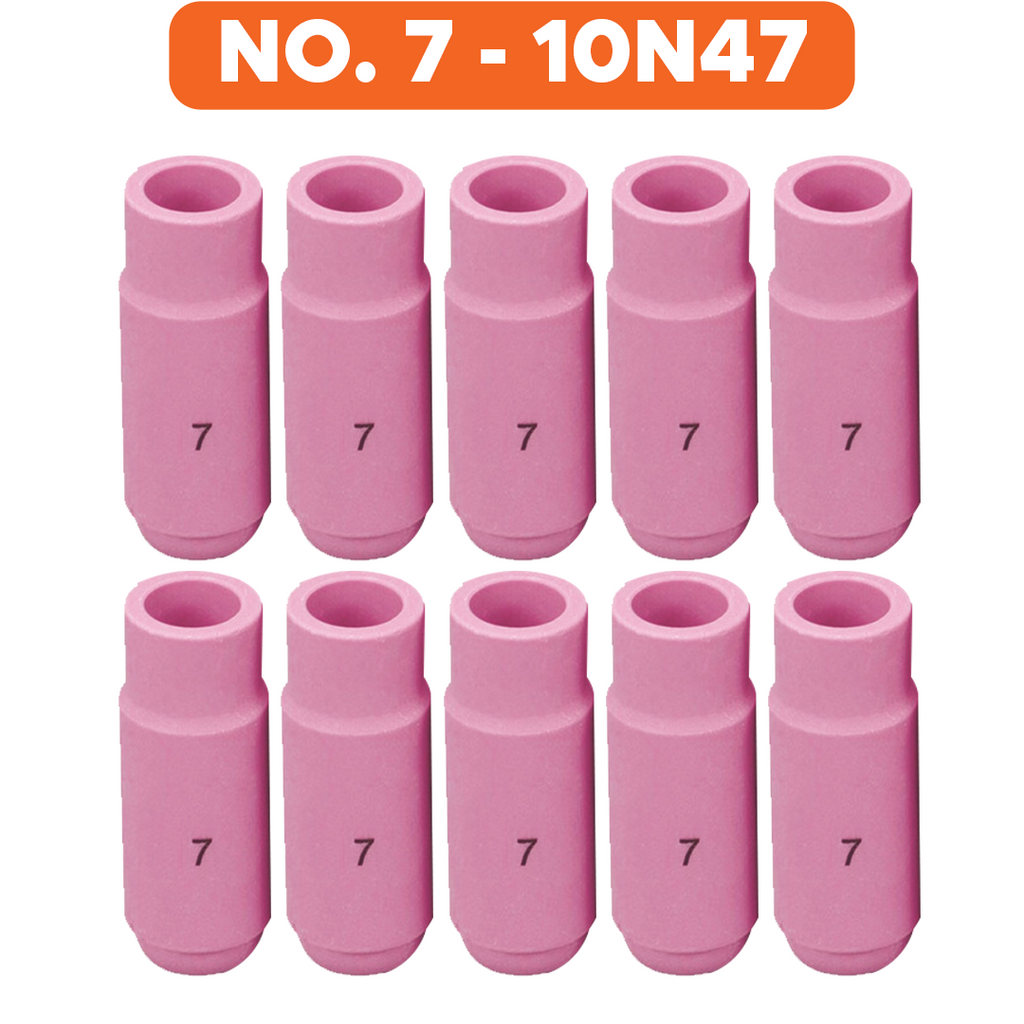

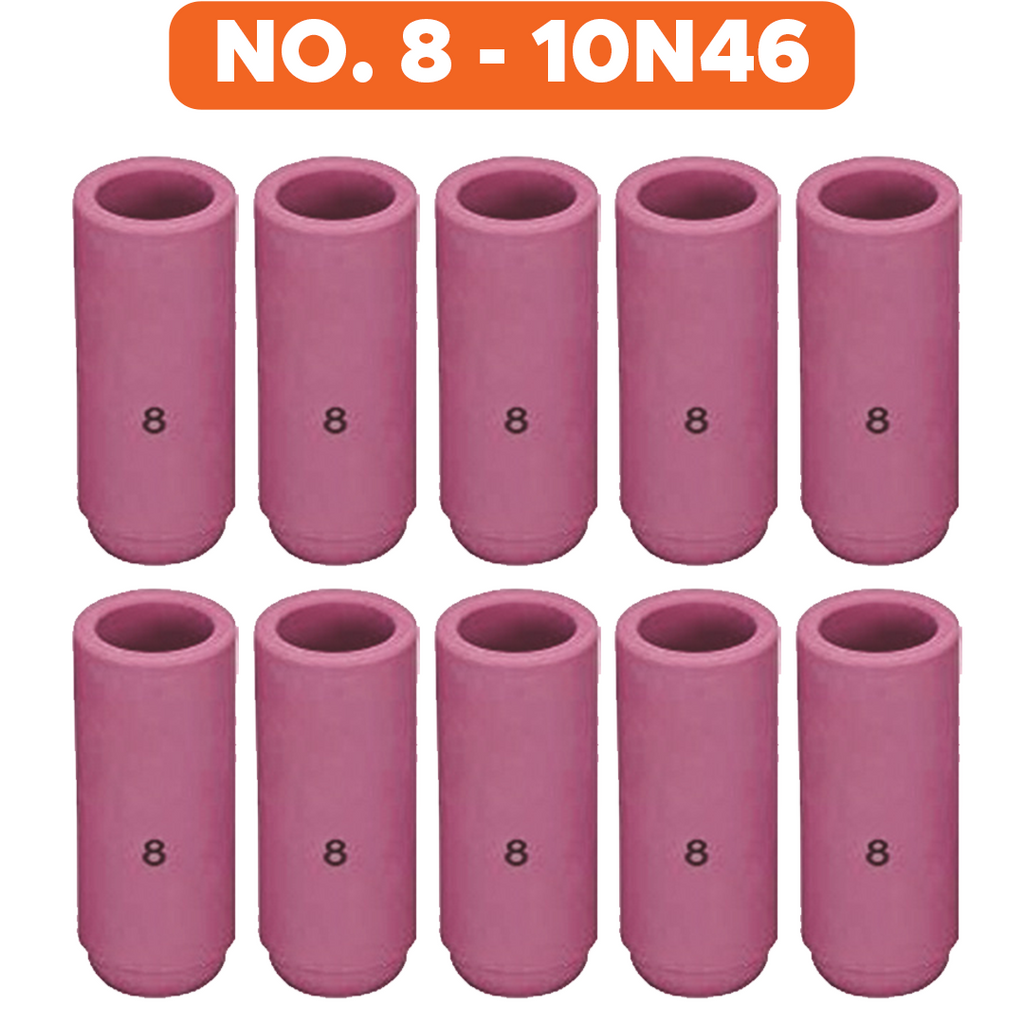

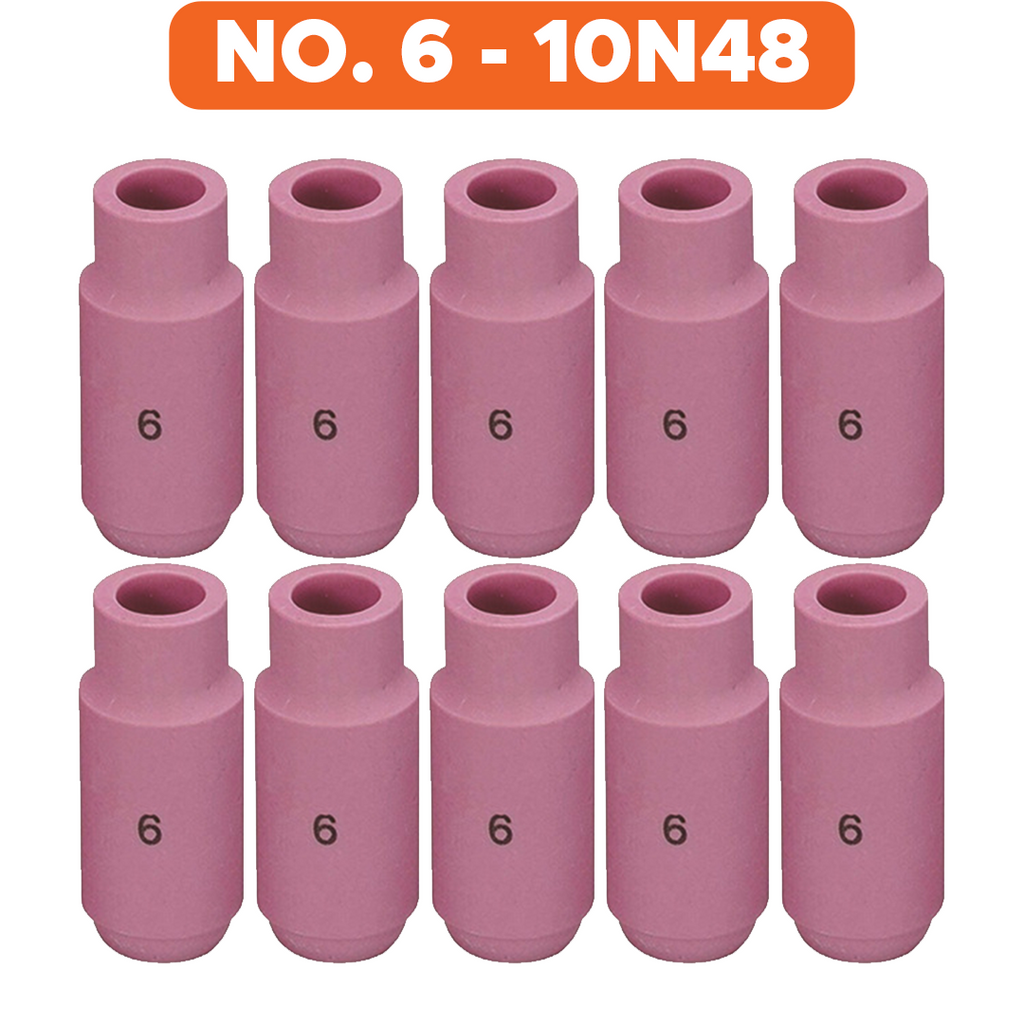

Type NO. 3 - 10N51 NO. 4 - 10N50 NO. 5 -10N49 NO. 6 - 10N48 NO. 7 - 10N47 NO. 8 - 10N46 NO. 10 - 10N45 NO. 12 - 10N44
